Fully automatic electronic canning machine Rinsing, isobaric filling and seaming.
Beer, Cider, Soft Drinks, Wine, etc..

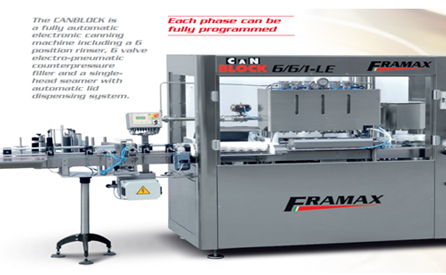

The CANBLOCK is a fully automatic equipment
optimized for micro craft breweries and includes a 6 position rinser, 6 valve
electro-pneumatic counterpressure filler and a single-head seamer with automatic lid
dispensing system.
| Specification | |
|---|---|
| Technical data |
Can Height range 115- 170mm (or on request) Inlet product: DN 40 Work height from floor: 1.050mm +/-50mm Display: colour touch screen Approx. overall dimensions: mm 2150*1050*2350h Machine manufactured according to CE safety regulations. |
| Optional |
Labeller at inlet Hot foil printer for labels Shower at the outlet Collection table Wheels |

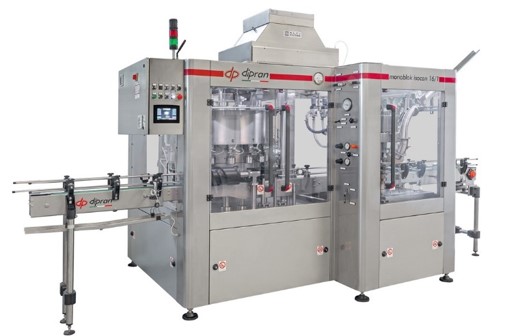

Mechanical machine type for filling PET bottles, GLASS bottles, CANS. The filling of any kind of carbonated liquid, total sanitizer, quickly change format bottle, low maintenance, filling system for every needs, are the main characteristics of our Isobaric machine. Due to the special valve of the filler and the ISO BEER regulation system it is particularly suitable to fill carbonated products in the presence of foam. Used for Beer and craft beers. The bottle enter into the screw and remain guided to the exit of the capper, avoiding contact with other bottles, considerably lowering the noise factor and maintaining it adequate to current standards. The machine can be done in version FREE STANDING, MULTIBLOCK or CORNERBLOK up 4 types of closure.
| Specification | |
|---|---|
| Filling |
Rinser/Isobaric Filling/Capping Integrated Multiblock system 9 9 1 Rotary Rinser machine 9 clamps mod. Marea Rotary Isobaric counter pressure filler 9 valves mod. Cervesia Capper machine with 1 head for Crown cap |
| Rising |
Rotary Rinser machine 9 clamps model “Marea” Rotary counter pressure filler 9 valves model “Cervesia” Capper machine with 1 head for Crown cap |
| Closing |
- Base completely covered in AISI 304 stainless steel with height adjustable feet. - Gears alternatively manufactured in steel and nylon - Central lubrication grease points - Speed adjustment by inverter - Set of photocells inlet / outlet control bottles - 1 (one) complete equipment to handle one bottle size. - Electric cabinet in stainless steel, complete with main switch and emergency button - Safety switches on each transfer star and cochlea - Safety guards with panels that can be opened and equipped with safety switches CE norms - Filler height with manual adjustable head - Jetting device with continuous jet (Connections supplied by customer) |

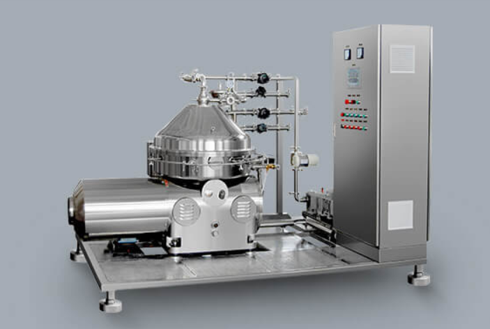

Disc separators from Huading Separator are designed especially for liquid-based applications. Using centrifugal force, they separate substances and solids from liquids. They are equally as effective at separating liquid mixtures at the same time as removing solids.
| Specification | |
|---|---|
|
- Beer, Beverage and food separation - Ship fuel, Oil lubricant separation - Mineral and vegetable oil separation - Bio diesel, glycerin separation - Chemical paint and pharmaceutical separation |
|
| Material Quality | All parts which are directly in contact with the product are manufactured in Stainless Steel. The bowl parts are forged to highest standards and this results in a seamless bowl design and a structure that eliminates micro cracks. |
| Desludging | The captured solid particles are discharged at intervals at full operating bowl speed. In self-cleaning bowl design, full or partial discharges are performed by a hydraulic function that opens and closes the bowl |
| Drive Mechanism | The rotating assembly is driven by an inverter controlled electric motor and a belt or gear driven spindle assembly coupled to the motor. The rotation speed is adjusted through the control panel. Anti-vibration mounts are fitted to the base frame which is bolted to floor to reduce vibration and noise. |
| Lubrication | The bearings and gears are independently lubricated from a single oil sump. |
| Frame | The lower and upper frames are manufactured by high quality casting. Depending on the application the frame can also be manufactured with stainless steel cladding. |
| Clean in Place (CIP) | The disc separators can be equipped with CIP system as an option. |
| Steam-sterilizable design (SIP) | The disc separator in steam-sterilizable design, 137 °C |
Brewing Equipment supply and out-sourcing service for brewing pub and micro breweries with various size from 5hl to 50hl.
| Installation date | Project | Customer | Country |
|---|---|---|---|
| 2021.08.17 | 30hl 5 vessel Brewhouse Equip. | Sevenbrau Hoengseong | Korea |
| 2020.04.13 | Dipran Monoblock 16/1 | Sevenbrau Yangpyeong | Korea |
| 2020.03.25 | Framax Canblock 6/1-LE | Squeeze | Korea |
| 2019.06.21 | Framax Canblock 6/6/1-LE | Craft Root Sokcho Brewery | Korea |
